Picture & Fixed Windows

Picture & Fixed Windows in Los Angeles, CA | Westlight Windows & Doors

Picture and fixed windows give you the view without the moving parts. For Los Angeles homeowners who want a wide, unobstructed glass opening, these non-operable units are the right call. The impact-rated laminated glass handles Florida’s coastal wind and debris conditions, and Westlight Windows & Doors installs every panel to hold its NOA rating in the field. If you’re replacing old picture windows or designing a new opening, call us at (903) 354-7134 to talk through sizing, glass, and what the project will take.

Call (903) 354-7134

Product Overview - Picture & Fixed Windows

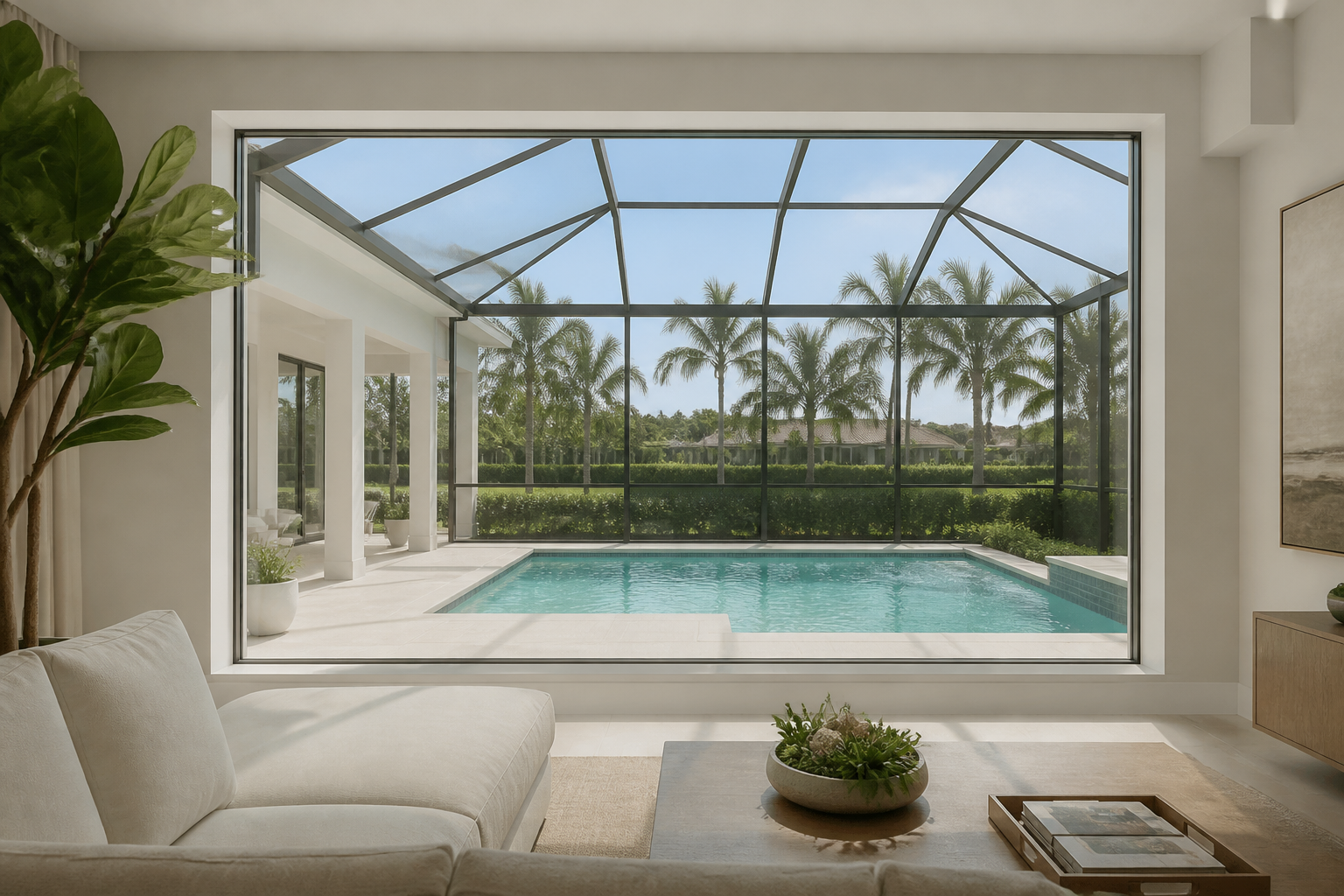

A picture window is a fixed, non-operable pane. It doesn’t slide, tilt, or crank. What it does is let in light and show you the water, the palm trees, or the neighborhood without a frame line breaking the view. Our impact series builds these units with laminated glass and heavy-duty aluminum or vinyl frames engineered for Florida’s wind-driven rain and airborne debris.

In Los Angeles, we see picture windows used in two ways. First, as the centerpiece of a living room or master suite facing the water or a courtyard. Second, as the middle of a three-unit arrangement, with operable windows on either side for ventilation. That pairing works well in coastal floor plans where you want natural air in the morning and a sealed view during a storm. Because the center unit never moves, it holds a tighter air and water seal than any operable window in the same opening.

Each panel is sized specifically for the opening. Up to 120 inches wide, which covers most architectural applications without needing a mullion split. The result is one clean sheet of glass from edge to edge. Westlight Windows & Doors orders these to exact site dimensions, so you get a tight fit with no goofy filler strips or oversized trim work covering gaps.

Technical Specifications

Here’s what the Picture & Fixed Windows product line offers, in plain terms.

• Frame materials: Extruded aluminum or vinyl, both with internal reinforcement options for large-format and high wind load conditions
• Maximum width: Up to 120 inches, depending on glass type and design pressure requirements for the site
• Glass options: Laminated impact glass with PVB interlayer, Low-E insulated glass, tinted glass, clear glass
• Finish options: White, Almond, Bronze, Black, Tan
• Operation: Fixed, non-operable, non-venting
• Design pressure: Matched to your Los Angeles wind zone, up to +/-100, never higher
• Best pairing: Operable units on either side for natural ventilation (sliders, casements, or awnings depending on the opening)

Hurricane & Compliance Performance

This is what matters when the wind picks up. Six things to know about the Picture & Fixed Windows product and how it’s engineered for Los Angeles exposures.

Laminated Impact Glass

Two panes of glass bonded with a PVB (polyvinyl butyral) interlayer. When debris strikes the surface, the glass may crack but it stays in the frame. The interlayer holds the pieces together, so you don’t get a breach. That’s the whole point of the impact rating, and it’s standard on this line.

Miami-Dade NOA / Florida Product Approval Numbers

Each configuration in the Picture & Fixed Windows line carries a Miami-Dade Notice of Acceptance and a Florida Product Approval number. These are product-specific and size-specific. We confirm the exact number for your configuration on your quote, and it gets reflected in your permit submittal.

FBC / HVHZ Compliance

The framing, glass package, and fastening schedule for Picture & Fixed Windows are engineered to Florida Building Code High-Velocity Hurricane Zone requirements. That’s the stricter of Florida’s wind codes, applicable to areas like Los Angeles with coastal wind exposures.

TAS 201 / 202 / 203 Testing Context

Products in this line are tested under the HVHZ protocol family. TAS 201 covers large-missile impact. TAS 202 covers cyclic wind-pressure loading, the repeated push-pull of a storm. TAS 203 covers forced-entry resistance. The sequence matters: a window has to survive the hit, then survive the pressure cycles, then keep someone out.

Design Pressure for Your Wind Zone

Design pressure, or DP, is a PSF rating that tells you how much structural wind load a window is built to handle. Picture & Fixed Windows are matched to your specific wind zone in Los Angeles, up to +/-100, and never higher. We don’t oversell ratings you don’t need, and we don’t underbuild what your permit requires.

Energy Performance (Low-E / Insulated Options)

For energy performance, the same laminated impact glass can be supplied as an insulated unit with Low-E coating. That combination gives you the impact rating plus a lower U-factor and reduced solar heat gain. In a west-facing Los Angeles living room, Low-E makes a real difference in afternoon heat.

Color & Glass Options

You’re not locked into a standard contractor-special white frame unless you want it. The Picture & Fixed Windows product line comes in five finishes: White, Almond, Bronze, Black, and Tan.

White is the most common in Los Angeles stucco homes, but Black is the sleeper pick for modern coastal and mid-century remodels. It reads clean against a light exterior and hides window trim lines well. Bronze and Tan work for the earth-tone Mediterranean styles you see in older Los Angeles neighborhoods, and Almond sits between white and tan for a softer exterior.

Glass selection is driven by what the window faces. Clear laminated impact glass is the baseline. Tinted laminated glass handles direct sun exposure on south and west walls. Low-E insulated glass is the right choice for air-conditioned spaces. All involve a PVB interlayer, so choosing between them is about light, heat, and how much glare you can live with.

Installation by Westlight Windows & Doors in Los Angeles

The biggest failure point on any impact window isn’t the product. It’s the install. A window can pass every TAS test in a lab and fail on your wall if it’s not set, shimmed, and sealed correctly. That’s why Westlight Windows & Doors handles every installation in Los Angeles with a process that preserves the panel’s rated performance.

Pre-install inspection comes first. We check the rough opening dimensions against the ordered unit, look at the condition of the existing framing, and confirm what’s behind the stucco or trim. In Los Angeles, we regularly run into wood buck issues and older framing that needs attention before a new window goes in. We identify that before the window arrives, not after.

Setting is done level, plumb, and square. We don’t force panels into out-of-square openings. Fastener types and spacing follow the NOA and FBC-HVHZ requirements for the specific size and DP rating. The perimeter gets an AAMA 812-compliant low-expansion foam sealant, which gives you an air and water seal that doesn’t push the frame out of alignment as it cures. Installation practice is per AAMA 2400/2410.

After setting and sealing, we water-test the installation and walk the opening with you. Permitting matters in Los Angeles, and HVHZ jurisdictions require product approval submittals with your application. We handle that as part of the scope.

Improper installation compromises the whole NOA-rated system. A gap in the perimeter seal, an under-fixed frame, a missing mull drain, all of it defeats the engineering. This is not a product to install casually. Get it done by a crew that installs these units week in, week out in Los Angeles.

Frequently Asked Questions - Picture & Fixed Windows

Get a Quote - Picture & Fixed Windows in Los Angeles

If you’re ready to see what a picture window will cost for your Los Angeles home, let’s get wheels on it. We’ll come out, measure the opening, and put a quote in your hands with real numbers, real glass options, and real finish colors. Call Westlight Windows & Doors at (903) 354-7134 to schedule your free on-site measurement. Whether it’s one window, a three-unit picture-and-operable arrangement, or a whole elevation of glass, we’ll walk through it with you.

Written by the team at Westlight Windows & Doors, serving Los Angeles, CA and the surrounding area.
