VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Los Angeles, CA | Westlight Windows & Doors

The VLX 100 Swing / Entry Door is a modern aluminum entry system built for homeowners in Los Angeles who want a clean, minimal sightline without giving up security or thermal performance. It is a single entry door with a slim 2.56-inch profile frame, multi-point locking hardware, and glass options that range from clear to impact-resistant laminated. Westlight Windows & Doors is an authorized ViewLux installation partner, which means you get the product installed to factory specification, with the warranty intact. We serve Los Angeles neighborhoods from Sherman Oaks to Silver Lake to Pasadena. Call (903) 354-7134 to schedule a free on-site measurement.

Call (903) 354-7134

Product Overview - VLX 100 Swing / Entry Door

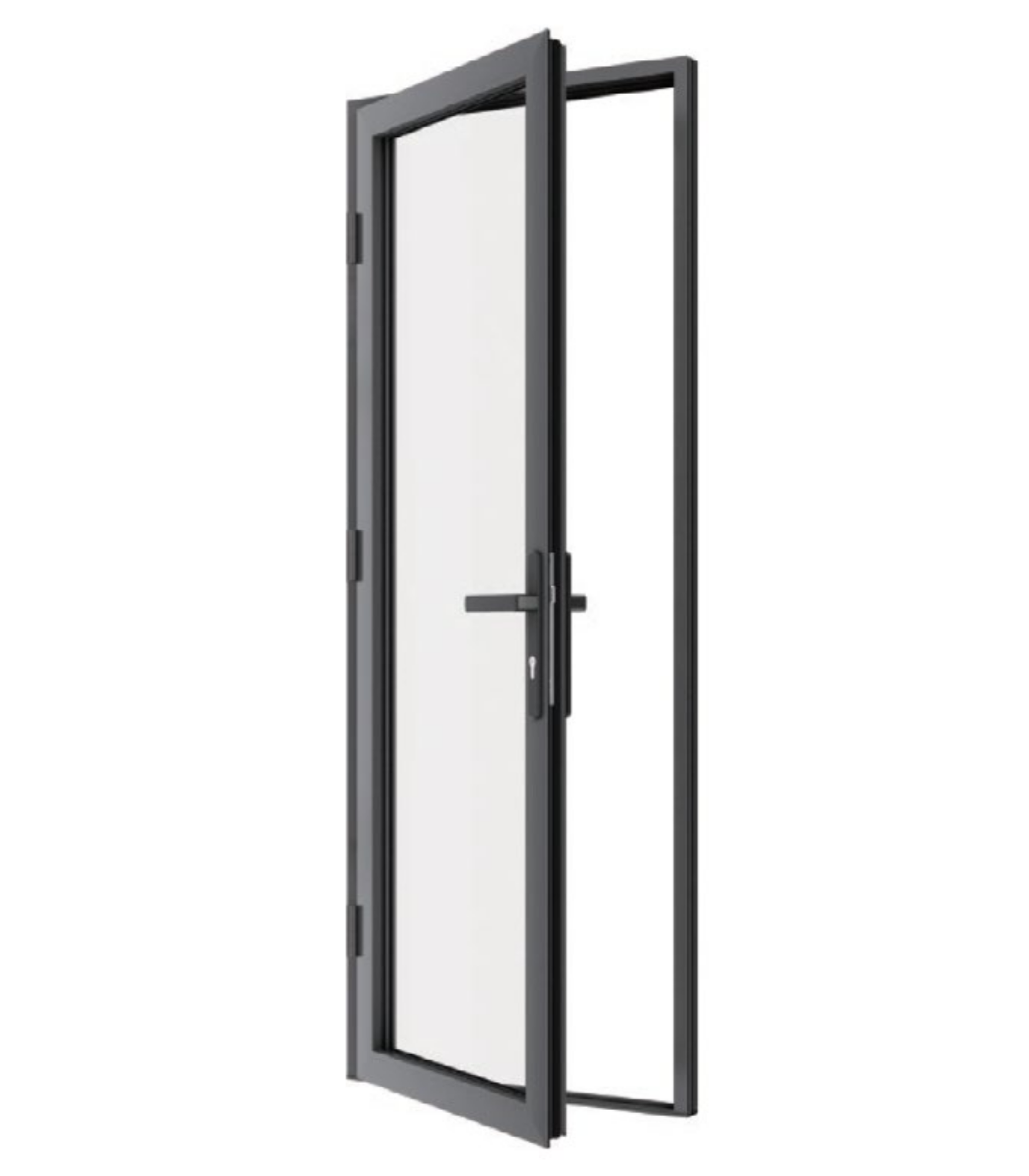

The VLX 100 Swing / Entry Door is part of ViewLux’s aluminum door lineup, designed for homeowners who want a front entry that disappears into the architecture rather than competing with it. The frame is 2.56 inches wide, which is noticeably slimmer than what you’ll find on typical vinyl or wood entry doors. That narrow profile gives you more glass area and a cleaner edge, which matters if you’re working with a mid-century ranch in the Valley or a contemporary build in Echo Park.

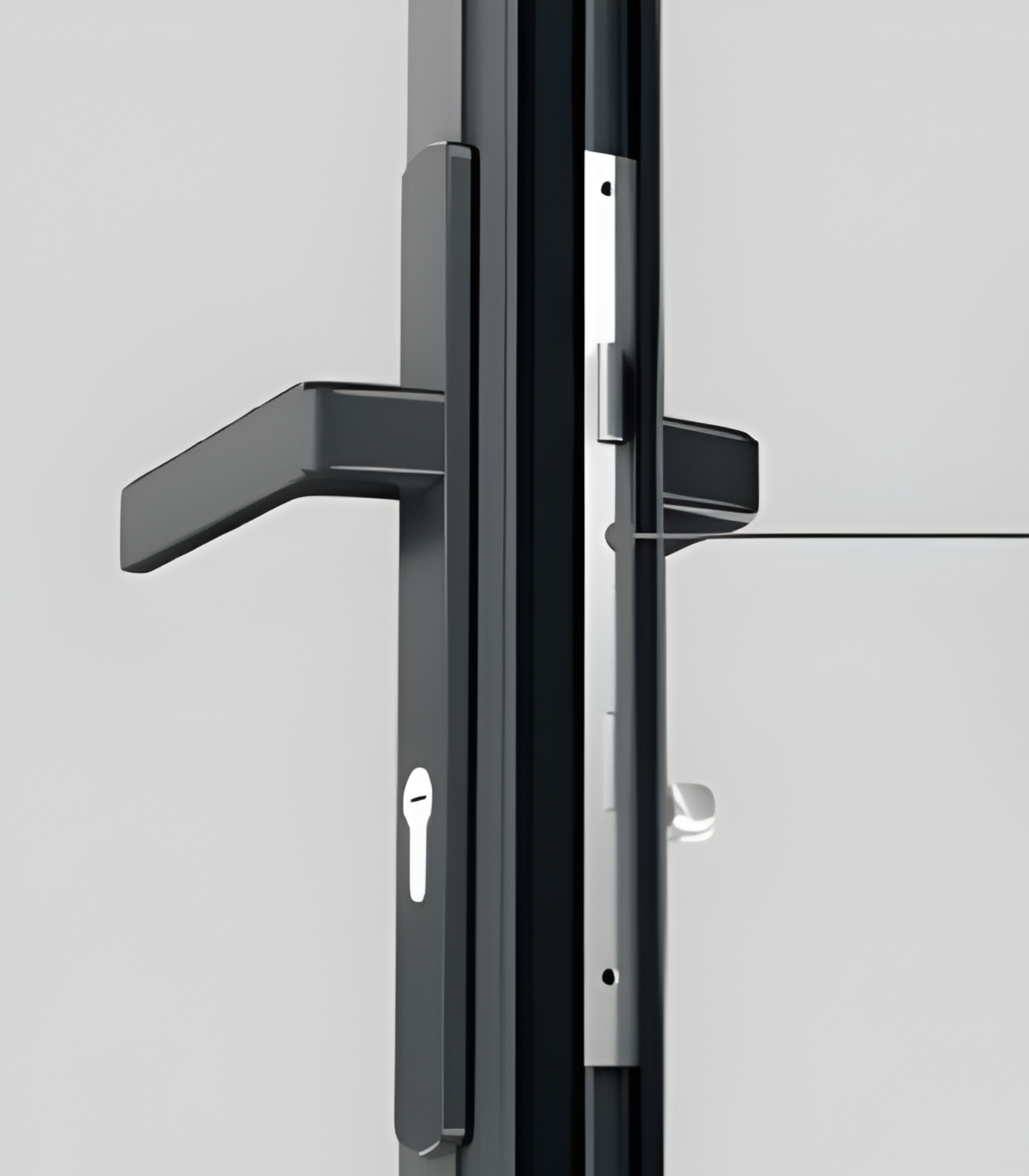

What sets this door apart is the multi-point locking system. Instead of a single latch, the door locks at multiple points along the frame when you lift the handle. That spreads the locking force across the full height of the door, which makes it harder to force open and keeps the door tighter against the weather seal. It’s a detail buyers appreciate once they live with it: the door closes with a solid, muted thunk, not a hollow rattle.

The aluminum is engineered for daily use in a city like Los Angeles, where doors face intense sun exposure, coastal salt air if you’re in Venice or Playa del Rey, and seasonal temperature swings. The wall thickness of the extrusion is 0.098 inches, which gives you structural rigidity without excess weight. The door swings, which means it works in most existing entry openings, and it can be sized up to 48 inches wide for a grander front entry. If you are replacing an old wood door that has warped or a builder-grade steel door that feels flimsy, the VLX 100 is worth a close look.

Technical Specifications

Here’s the spec breakdown for the VLX 100 Swing / Entry Door, in plain language:

• Frame profile width: 2.56 inches, a slim aluminum frame that maximizes glass area
• Wall thickness: 0.098-inch aluminum extrusion for structural strength and long-term dimensional stability
• Maximum door width: Up to 48 inches wide for a single panel
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, and Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood
• Screen options: Retractable screen or no screen
• Locking: Multi-point lock as standard

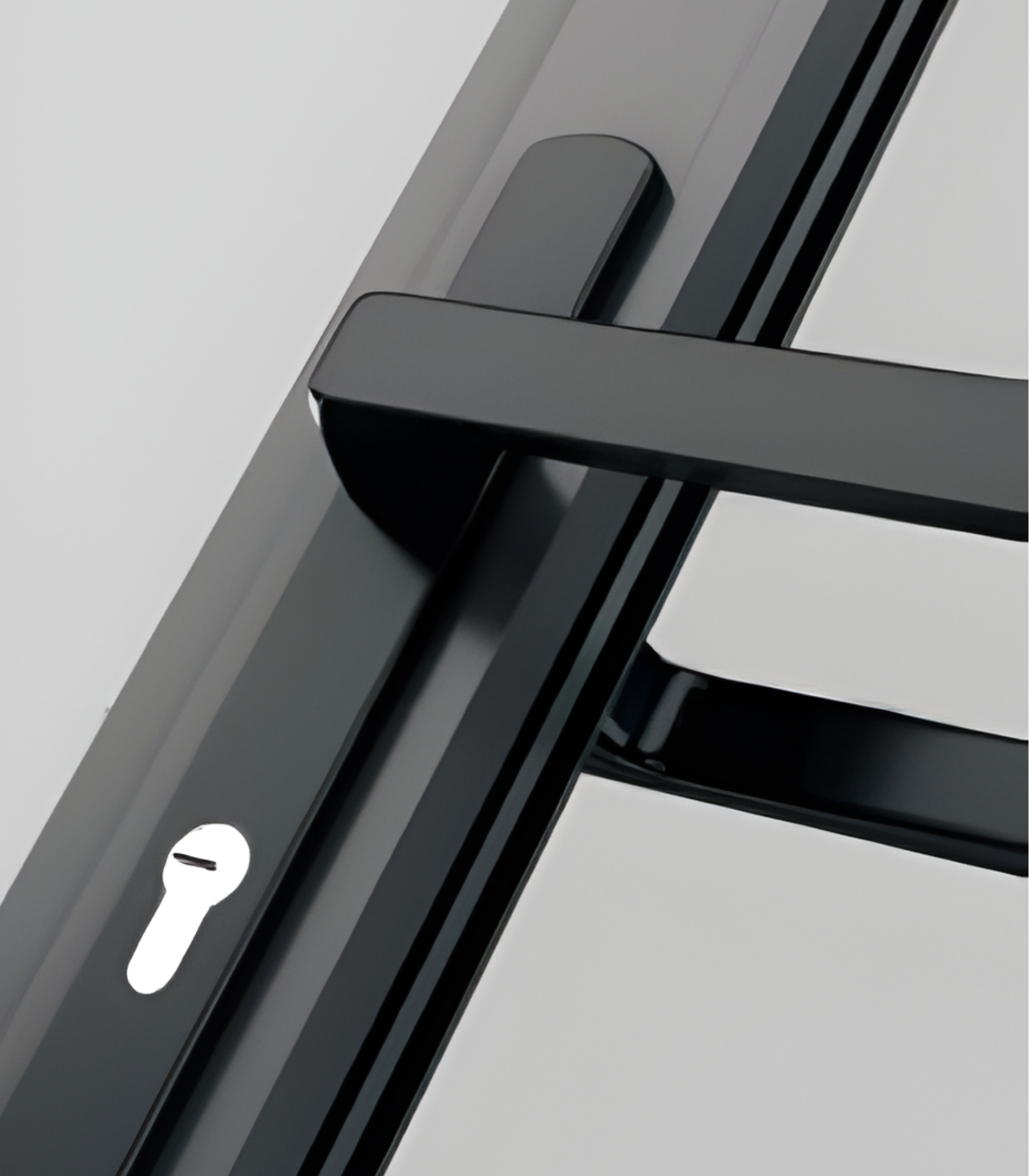

• Hardware: Available in several finishes to match door color or contrast it

These specs are what we quote from at Westlight Windows & Doors, and we’ll walk you through every choice before you sign anything. If you have questions about clearances or rough opening requirements, call (903) 354-7134 and ask for the door team.

Performance Features

Thermal Efficiency - The frame uses thermal break technology, which separates the interior and exterior aluminum surfaces to reduce heat transfer. There’s an optional Low-E glass coating on VLX 100 doors, which can help control heat gain and loss. The National Fenestration Rating Council (NFRC) criteria provide a reference point for performance, and Low-E is a strong choice for south-facing entries.

Acoustic Performance - Aluminum frames with quality perimeter seals resist outside noise better than older wood frames with gaps. Laminated glass upgrades add meaningful sound reduction, making a difference for homes near busy corridors like Sunset Boulevard or the 405.

Airtightness & Weather Seal - The multi-point locking system pulls the door snug against its gaskets, which keeps air from leaking around the edges. That’s a foundation of airtightness and a big part of why this door feels different from a basic slab door that only latches in the middle.

Waterproofing - The sill design is built to shed water away from the threshold, and the perimeter installation method includes a low-expansion foam sealant on all joints per AAMA 812. That keeps water from getting behind the frame, which is the leading cause of long-term rot and mold in Los Angeles entryways.

Wind Resistance - The VLX 100 is wind-load rated for local climate requirements. Los Angeles sees Santa Ana wind events, especially in foothill communities like Altadena and La Cañada. Laminated glass adds impact resistance and is worth considering if you live in a high-wind pocket.

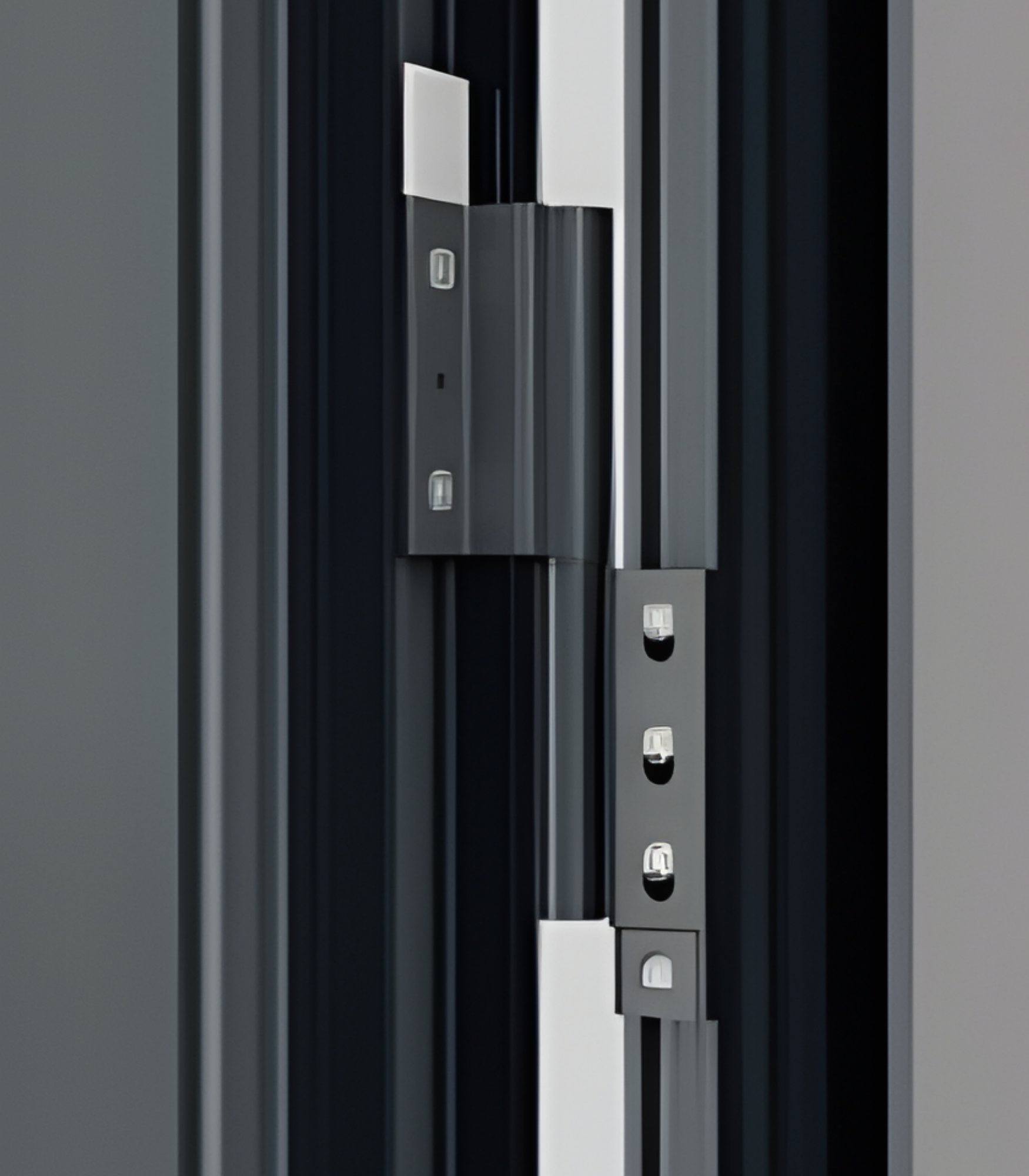

Security & Hardware - Multi-point locking is the headline here, but it’s paired with robust hinges and a reinforced strike plate. Optional laminated glass makes forced entry through the glass substantially harder. Many of our Los Angeles customers opt for laminated glass on door installations for that reason.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black and Pure White are the most common choices in Los Angeles, pairing well with modern and farmhouse styles. Anodized Silver has a metallic, almost industrial look that suits loft conversions in the Arts District. Bronze and Champagne read warmer and work nicely on Spanish Revival and Mediterranean homes, which you see a lot of in Los Feliz and Hancock Park. Teak Wood is a finish, not real wood, so it gives you the warmth of timber without the maintenance.

For glass, Clear is the default and gives you the truest view. Frosted and Obscure glass work for entry doors where you want privacy without blinds, and they are popular on doors that face the street. Low-E is a coated glass that reflects heat, which is worth considering if your entry gets direct afternoon sun, which is most of Los Angeles. Tempered glass is heat-strengthened for safety, and Laminated glass is two panes bonded with a plastic interlayer, which is the option to choose for impact resistance or added security.

Installation by Westlight Windows & Doors in Los Angeles

Buying a high-performance door is only half the job. A door that is not installed level, plumb, and square will not seal properly, will not lock smoothly, and will not last. We cannot overstate how often we see this in Los Angeles homes where a previous contractor cut corners. The manufacturer’s warranty on a ViewLux door assumes professional installation. If the door is installed incorrectly, the warranty can be voided. That is one reason Westlight Windows & Doors is an authorized installation partner.

Our process starts with a pre-installation inspection. We measure the rough opening, check the subfloor and threshold condition, and confirm clearances before ordering your VLX 100 door. When the door arrives, our crew sets it level, plumb, and square, shimming as needed so the panel hangs true. The perimeter gets an AAMA 812 low-expansion foam sealant on every joint, which seals the frame to the opening and helps with sound control and mist prevention. Then we check the reveal around the door and adjust the multi-point lock so it engages cleanly.

Los Angeles has a mix of building eras, which means rough openings can vary from a 1940s stucco bungalow in West Adams to a brand-new build in Culver City. Some openings need sill repair or a new threshold before a door can go in. We’ll tell you early, not mid-install. Our work is done to AAMA 2400/2410 installation standards, which every member of our installation team follows, and we finish with a water test to confirm the threshold and perimeter seal are doing their job.

Frequently Asked Questions - VLX 100 Swing / Entry Door

What is the lead time for the VLX 100 Swing / Entry Door?
Typical lead time for the VLX 100 is 4 to 6 weeks from order confirmation, depending on glass and finish selections. Custom sizes and laminated glass can push that timeline toward the longer end. Call (903) 354-7134 with your opening size and we can give you a more precise window, and the project estimate itself is free.

Does the VLX 100 qualify for energy tax credits?
Qualification depends on the specific glass package and the energy performance rating of that configuration. Low-E and laminated glass options are both worth reviewing with your tax professional to see if your project qualifies. We can provide the NFRC-rated performance documentation for your exact build when you get a quote. Call (903) 354-7134 to get started.

What warranty comes with the VLX 100 Swing / Entry Door?
The VLX 100 comes with a manufacturer’s warranty from ViewLux that covers the frame, glass, and hardware components according to the terms set by the manufacturer, and because Westlight Windows & Doors installs as an authorized partner, your installation is completed to factory spec so the warranty remains valid. We’ll walk you through all warranty details before you sign any contract.

Can I customize the size of the VLX 100?
Yes. The VLX 100 Swing / Entry Door is available in sizes up to 48 inches wide for a single panel, which suits most front entries in Los Angeles, and there is flexibility within custom production for height and width to match your rough opening. Standard and oversized configurations are available, and we’ll verify the rough opening before ordering.

How do I maintain aluminum frames on my entry door?
Aluminum frames need very little maintenance. Wash with mild soap, water, and a soft cloth twice a year, and keep the track and sill free of debris. In coastal areas like Santa Monica and Manhattan Beach, rinse salt residue off the frame periodically to protect the finish. If the finish ever needs attention, do not use abrasive cleaners, and call (903) 354-7134 if you notice any seal or hardware issue on your door.

Get a Quote - VLX 100 Swing / Entry Door in Los Angeles

The fastest way to get an accurate price for a VLX 100 Swing / Entry Door is to have us measure your opening. We’ll come to your Los Angeles home, take exact dimensions, review glass and finish options with you, and put together a written quote. Call Westlight Windows & Doors at (903) 354-7134 to schedule your free on-site measurement, or ask for the door team and we’ll answer your questions on the spot.

Written by the team at Westlight Windows & Doors, serving Los Angeles, CA as an authorized ViewLux installation partner.
