AfterVLX 500 Single & Double Hung Window in Los Angeles, CA | Westlight Windows & Doors
The VLX 500 Single & Double Hung Window is a vertical-glide aluminum window built for homeowners who want clean sightlines, reliable operation, and frames that won’t sag or warp after a decade of Southern California sun. Both sashes tilt inward, which means you can clean the exterior glass from inside your home, no ladder, no hassle. We’re Westlight Windows & Doors, an authorized ViewLux installation partner serving Los Angeles, CA, and we’ve installed this exact series in homes from Sherman Oaks to Mar Vista. Aluminum hung windows are a smart choice in Los Angeles, where wood frames swell with coastal moisture and vinyl can look tired fast. Call (903) 354-7134 to schedule a free on-site measurement and quote.
Product Overview - VLX 500 Single & Double Hung Window
The VLX 500 answers a simple question: can a hung window be genuinely modern? It can. ViewLux engineered this series around a classic vertical-glide operation, the kind you’d find on a traditional craftsman or Spanish Revival, but built it from extruded aluminum with a slim 2.36-inch profile width. That narrow frame puts more glass in the opening. More glass means more daylight and cleaner exterior lines, which is exactly what Los Angeles architects and homeowners want when they’re replacing old wood double hungs or upgrading a mid-century home.
What makes this window worth your attention is the tilt-in sash mechanism. Both the top and bottom sashes release and tilt toward the interior, so cleaning the outside pane from a second-story bedroom in Echo Park or a third-floor condo in Downtown LA becomes a one-minute job instead of a risky balancing act. Nobody should be on a ladder cleaning windows.
Durability is the other reason buyers keep choosing this series. The aluminum wall measures 0.079 inches thick, which gives the frame real torsional stiffness. That matters in Los Angeles, where windows face daily UV exposure, marine-layer moisture within a few miles of the coast, and dry inland heat in the Valley. Aluminum doesn’t absorb moisture, doesn’t rot, doesn’t attract termites, and holds its finish through years of sun. We see a lot of homes in Los Angeles where 20-year-old vinyl windows have yellowed and chalked. This frame won’t do that.
Technical Specifications
Here’s the VLX 500 at a glance, in plain terms. These are the numbers and options that matter when you’re comparing windows side by side.
- Profile width: 2.36 inches - slim enough for a modern look, deep enough for a stiff, stable frame.
- Aluminum wall thickness: 0.079 inches - substantial extrusion that resists racking and keeps sashes tracking true.
- Operation: Single hung (bottom sash moves) or double hung (both sashes move).
- Cleaning: Tilt-in sashes on both hung configurations.
- Glass options: Clear, Frosted, Low-E, Tempered, Laminated.
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
- Screen options: Half-screen or full-screen, depending on how you want airflow and visibility balanced.
- Thermal performance: Thermal break technology, NFRC-rated.
- Installation standard: AAMA 2400/2410 compliant when installed by Westlight Windows & Doors.
If you want a specific size quote for an unusual opening, call (903) 354-7134 and we’ll walk through your measurements.
Performance Features
Thermal Efficiency

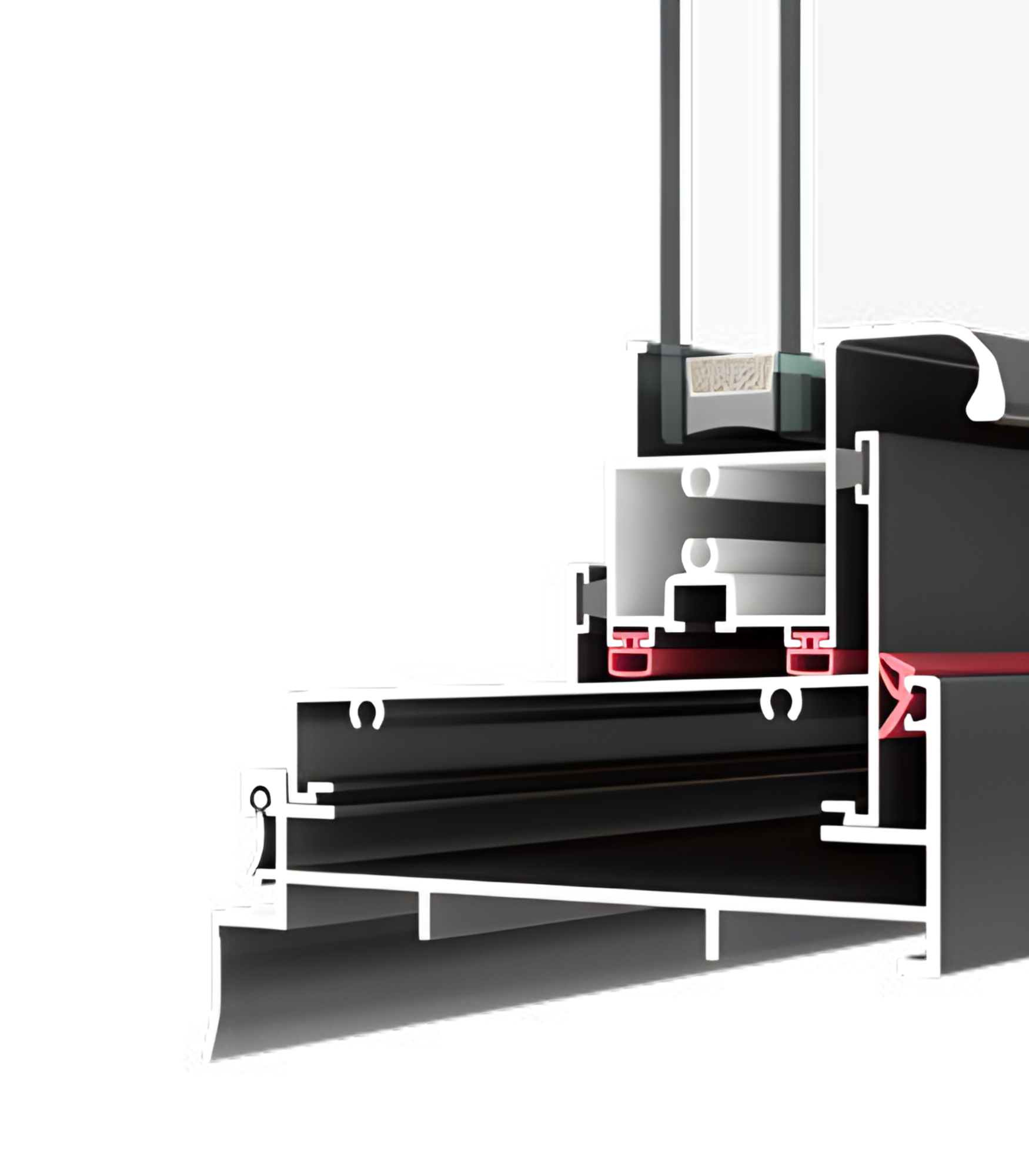

Aluminum conducts heat, which is why the VLX 500 includes a thermal break inside the frame profile. That barrier interrupts heat transfer between the exterior and interior aluminum faces. Combined with Low-E glass, this window carries NFRC energy ratings and helps keep July electric bills in Los Angeles from climbing as your AC fights window heat gain.
Acoustic Performance
If you live near the 405, the 101, or a busy stretch of Sunset Boulevard, you know traffic noise doesn’t stop. The VLX 500’s aluminum construction, tight weatherstripping, and laminated glass option cut exterior noise noticeably. Laminated glass is the single biggest acoustic upgrade you can spec on a hung window, and it’s worth serious consideration in Los Angeles.
Airtightness & Weather Seal
A hung window is only as good as its seal between sashes and frame. The VLX 500 uses continuous weatherstripping along the meeting rail and perimeter, which reduces air infiltration and keeps conditioned air inside. In Los Angeles, that also means less fine dust and wildfire-season particulate sneaking through your window gaps.
Waterproofing
Westlight Windows & Doors installs every VLX 500 with AAMA 812 low-expansion foam sealant on all perimeter joints. That foam is the difference between a window that sheds water and a window that lets water find the rough opening. We’ve torn out enough poorly sealed windows in Los Angeles to know that sealant choice is not a detail; it’s the whole ballgame.
Wind Resistance
Los Angeles has specific wind-load requirements for windows, especially in hillside zones and coastal corridors like Pacific Palisades and San Pedro. The VLX 500 is wind-load rated for local climate conditions. We confirm structural ratings against your specific exposure during the quoting process, not after the windows arrive.
Security & Hardware
The VLX 500’s aluminum frame and solid locking hardware give you a sturdier barrier than older vinyl or wood hung windows. You can also specify laminated impact-resistant glass, which holds together under impact instead of shattering. That’s a meaningful upgrade for ground-floor windows in Los Angeles.
Color & Glass Options
You get six finish choices on the VLX 500, and each one reads differently depending on your home’s style. Premium Black is the current favorite for modern and contemporary Los Angeles homes; it gives windows a crisp, architectural edge against white stucco or light brick. Pure White suits traditional and coastal homes, blending cleanly with white trim. Anodized Silver is the honest-aluminum look; it reads utilitarian and works beautifully on mid-century and industrial lofts. Bronze and Champagne are warmer metallics that pair well with earth-toned exteriors and Spanish tile. Teak Wood is a wood-look finish for homeowners who want the warmth of wood without the maintenance; it’s a smart choice on a craftsman in Los Feliz or Pasadena.
Glass selection is about function more than looks. Clear is standard. Low-E cuts heat gain and UV fading, which protects furniture and floors in sun-heavy Los Angeles rooms. Frosted gives privacy for bathrooms and street-facing ground floors. Tempered is safety glass that crumbles instead of shattering; code usually requires it near doors and in certain locations. Laminated adds acoustic damping and impact resistance. We’ll help you pick the right combination for each room.
Installation by Westlight Windows & Doors in Los Angeles
A good window installed badly is still a bad window. That’s the honest truth we tell every homeowner in Los Angeles who calls us. The VLX 500 carries a manufacturer warranty, but that warranty assumes a proper installation. Gaps, racked frames, stripped screws, missing sealant; any of these can void coverage and leave you fighting leaks two years in.
Our installation process on every VLX 500 project starts with a pre-install inspection. We check the rough opening dimensions, framing condition, and any existing water damage before we order or install anything. If the opening has rot or a bad sill, we deal with it then, not after the window is in place.
During install, we set every window level, plumb, and square. If a frame is racked even slightly, the sashes bind and the locks don’t engage properly. That’s a common issue we fix on other companies’ installs. We apply AAMA 812 low-expansion foam sealant at all perimeter joints, and the entire installation follows AAMA 2400/2410 methods. Those aren’t marketing acronyms; they’re the industry standards for window installation, and they’re what a manufacturer expects when a warranty claim comes up.
Los Angeles brings specific considerations. Coastal homes in Marina del Rey and Playa del Rey face salt air and marine moisture. Inland homes in the San Fernando Valley face extreme summer heat. Hillside homes face wind exposure. We account for those conditions when we spec flashing, sealant, and glass. Once each window is set and sealed, we run a water test to confirm the installation is tight. Then we clean up, remove old windows and debris, and walk you through the operation and care of your new VLX 500 windows.
Frequently Asked Questions - VLX 500 Single & Double Hung Window
Lead time for the VLX 500 typically runs between four and eight weeks from order confirmation, depending on the finish and glass combination you choose. Custom sizes don’t add much time, but specialty glass like laminated or tempered can. We confirm the exact timeline before you sign anything, and we coordinate installation around your schedule. Call (903) 354-7134 to get a current lead time for your specific configuration.
The VLX 500 may qualify for federal energy tax credits when ordered with Low-E glass, but eligibility depends on the specific NFRC ratings for your exact configuration and the current tax code. We can provide the NFRC documentation for you to share with your tax preparer. We can’t promise a credit, but we’ll give you every performance document you need to see if you qualify.
The VLX 500 carries a manufacturer’s warranty through ViewLux, and the coverage stays valid when the window is installed by an authorized partner like Westlight Windows & Doors, following AAMA 2400/2410 installation standards. Improper installation is the most common reason window warranties get denied, so professional installation is not an upsell here. We also stand behind our installation work with our own workmanship protection.
Yes, the VLX 500 is built to order, which means we can fit standard and custom opening sizes. If you’re replacing old windows in a Los Angeles home with non-standard rough openings, custom sizing is usually the better route than reframing. We come out, take exact measurements, and order windows that fit your openings correctly. Call (903) 354-7134 to schedule a free measurement.
Aluminum frames need almost nothing from you. Wipe the frames and tracks with mild soap and water twice a year, keep the weep holes clear of debris, and lubricate the sash tracks with a dry silicone spray if they ever feel stiff. The finishes on the VLX 500 are baked on and resist fading and chalking, so you won’t be painting or refinishing them. In coastal Los Angeles, a quick rinse every few months clears off salt film.
Get a Quote - VLX 500 Single & Double Hung Window in Los Angeles
If you’re replacing windows in Los Angeles and the VLX 500 sounds right, the next step is simple. Call (903) 354-7134 and we’ll schedule a free on-site measurement. You’ll get a written, line-item quote with exact pricing for your glass, finish, and installation. No vague ranges, no pressure. Just a real number from a Los Angeles window company that knows this product inside and out.
Written by the team at Westlight Windows & Doors, authorized ViewLux installation partner serving Los Angeles, CA.
Detailed Images
