AfterVLX 100 Pivot Door in Los Angeles, CA | Westlight Windows & Doors

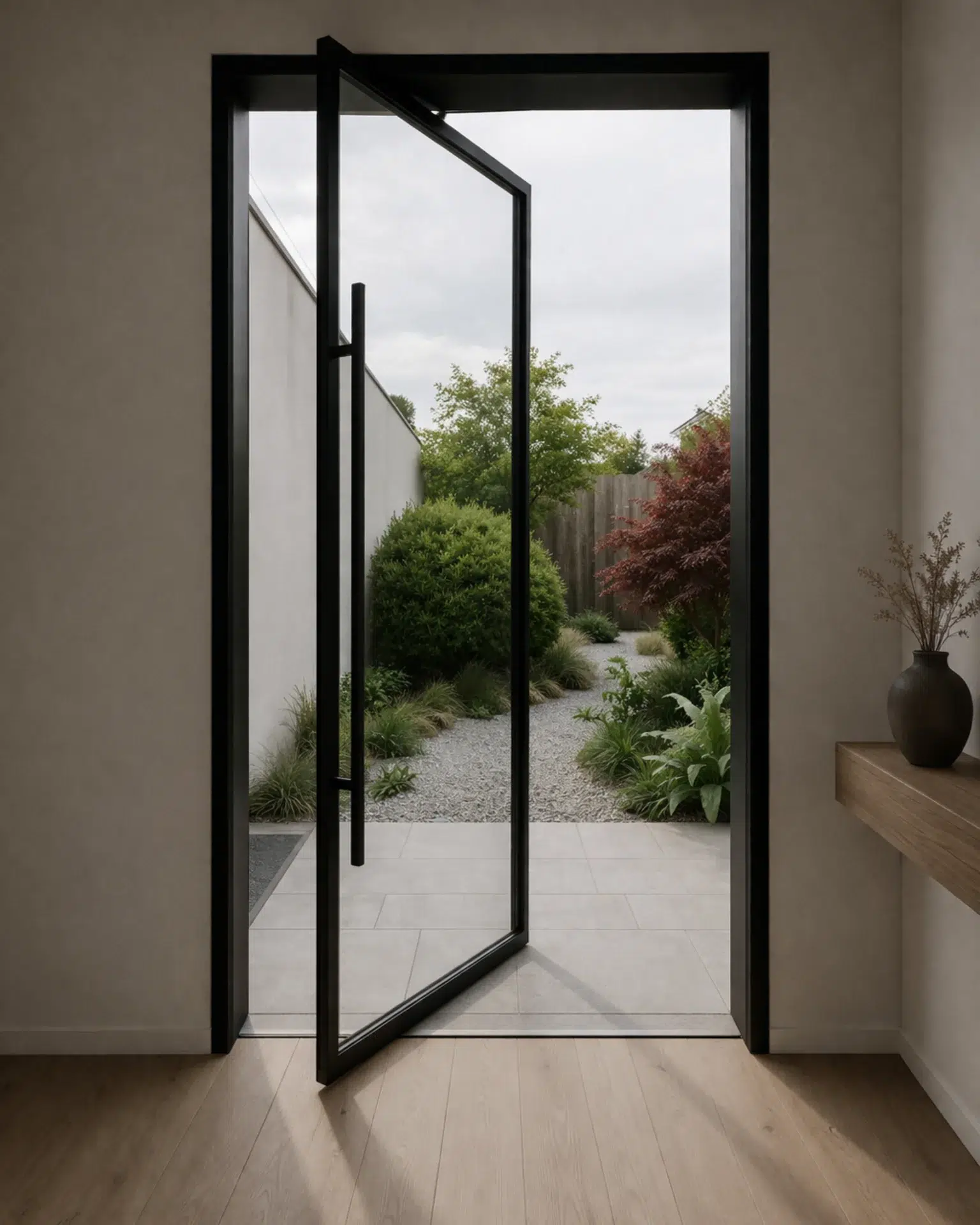

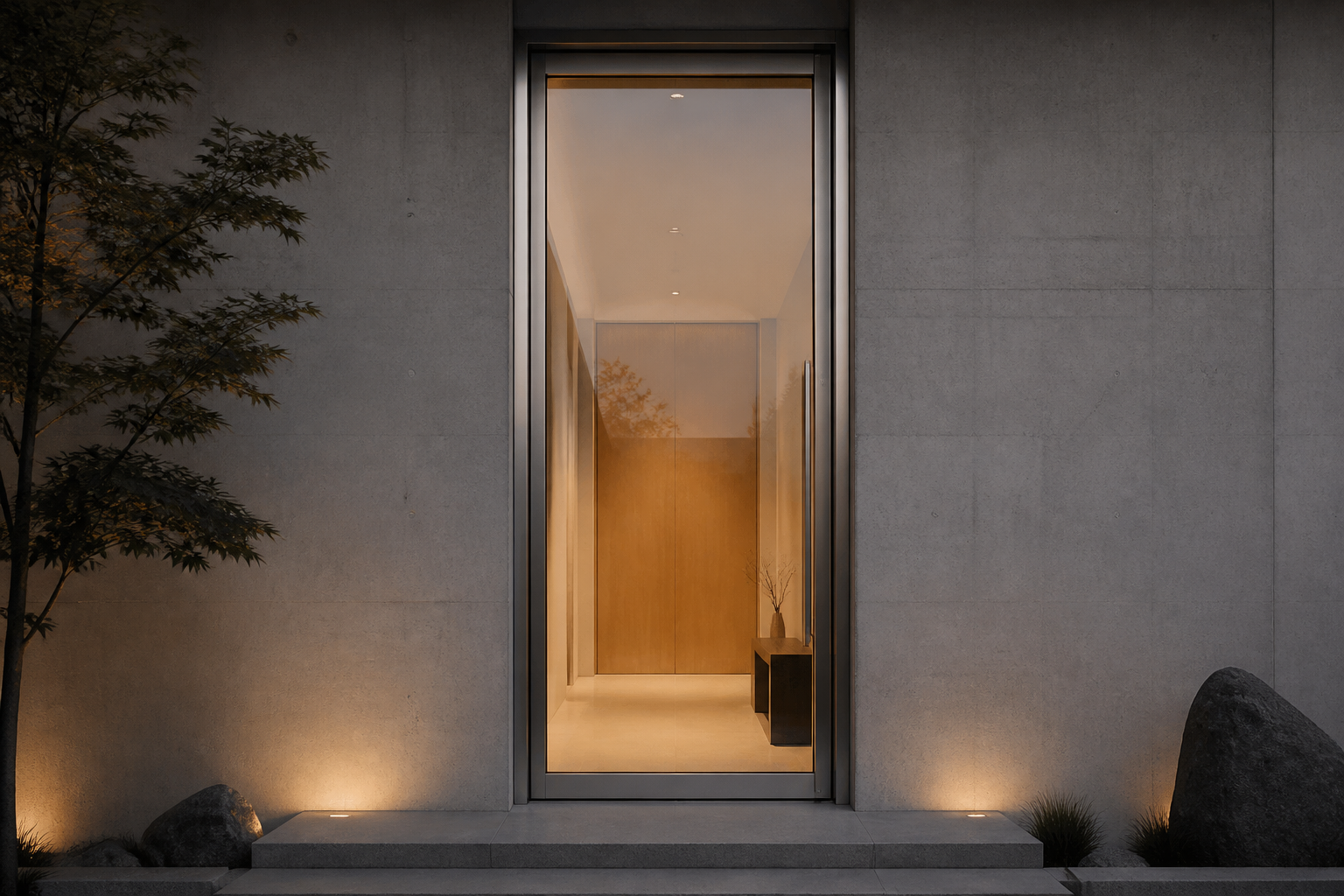

The VLX 100 pivot door is a heavy-duty aluminum entry system that rotates on a vertical center axis instead of side hinges, which lets it carry oversized glass panels far beyond what a conventional door can handle. This is a door that makes a statement: floor-to-ceiling glass, a frame that stays perfectly straight under enormous weight, and a pivot point you can place off-center for a wider, more dramatic opening. Westlight Windows & Doors is an authorized ViewLux installation partner serving Los Angeles, CA, and we handle everything from the first measurement to the final seal. If you’re pricing this door for an architectural project, call (903) 354-7134 for a free written estimate.
Product Overview - VLX 100 Pivot Door
ViewLux engineered the VLX 100 as a structural statement, not just an entrance. The frame is extruded aluminum with a wall thickness of 0.098 inches and a profile width of 2.56 inches, which gives the door enough rigidity to support panes up to 60 inches wide and 120 inches tall. That is a lot of glass, and the pivot mechanism is what makes it possible. Instead of hanging the weight on side hinges, the door rotates on a vertical axis, so the frame bears the load evenly and the glass stays stable through every open-close cycle.
Homeowners and architects in Los Angeles choose the VLX 100 when they want an entry that reads as a piece of architecture rather than a standard front door. It’s common on Mid-Century modern remodels in the Hollywood Hills, new builds in Bel Air, and contemporary townhomes in Silver Lake. The door works with single-panel configurations or paired designs, and the pivot point can be centered or offset to change how the door swings and how wide the clear opening is. What you get is an entrance that feels like a glass wall most of the time, then pivots open to connect the interior with a courtyard, backyard, or city view. The aluminum resists corrosion, so it holds up well in coastal air near Venice or Santa Monica, where salt and moisture wear down lesser materials.
Technical Specifications
- Frame material: Heavy-duty extruded aluminum
- Wall thickness: 0.098 inches
- Profile width: 2.56 inches
- Maximum panel span: Up to 60 inches wide × 120 inches tall
- Operation: Vertical center-axis pivot, centered or offset placement
- Glass options: Clear, frosted, obscure, Low-E, tempered, laminated (impact-rated laminated available)
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Performance standards: NFRC-rated thermal performance, AAMA 2400/2410 installation compliance, AAMA 812 perimeter sealing
Performance Features
Thermal Efficiency. The VLX 100 frame uses thermal break technology that separates the interior and exterior aluminum faces. This reduces heat transfer through the metal. In Los Angeles, where summer heat pushes hard against west-facing entries in the Valley, an NFRC-rated thermal break keeps the interior face of the door cooler and your cooling bill steadier.
Acoustic Performance. The frame’s rigidity works with laminated or double-glazed glass to cut down street noise. For homes on busy Los Angeles corridors like Wilshire, Ventura, or Sunset Boulevard, the right glass package makes a measurable difference in what you hear indoors. Laminated glass is the strongest option for sound control.
Airtightness & Weather Seal. The VLX 100 is installed with a continuous perimeter seal. When we set the door, we follow AAMA 2400/2410 installation standards and seal every joint with AAMA 812 low-expansion foam. That means no air leaks at the header, sill, or jambs, and no surprises when the Santa Ana winds blow dust against the door.
Waterproofing. A pivot door with this much glass has to manage water carefully. The sill design and perimeter sealing work together to keep rainwater out, even during the heavy downpours Los Angeles gets in winter. We test every installation with water after setting the door, so any issue shows up before we leave, not after the first storm.
Wind Resistance. The VLX 100 is wind-load rated for local climate requirements. For elevated sites in the hills or exposed coastal properties where gusts hit harder, the door can be specified with impact-rated laminated glass to handle the pressure without flexing or letting water through.
Security & Hardware. The pivot system uses heavy-duty floor and header hardware designed for repeated daily use. Laminated glass adds a security benefit: even if the pane is struck hard, the interlayer holds the glass together. For Los Angeles homeowners concerned about break-ins, laminated is the upgrade we recommend most often.
Color & Glass Options
The VLX 100 comes in six finishes, and the right choice depends on your home’s architecture. Premium Black and Anodized Silver are the most popular in Los Angeles right now, especially on modern and Mid-Century homes where thin dark or bright metal frames match steel-window aesthetics. Pure White suits California coastal and Spanish-style homes where the frame should disappear into light stucco. Bronze and Champagne offer warmer metallic tones that work well on traditional and transitional houses in neighborhoods like Hancock Park or Pasadena. Teak Wood is a specialty finish that reads as natural timber, ideal when you want the look of a wood pivot door with aluminum durability.
Glass selection changes how the door functions as well as how it looks. Clear tempered glass maximizes views and daylight. Frosted and obscure glass provide privacy for street-facing entries while still letting light through. Low-E glass is the right choice on south- and west-facing exposures in Los Angeles to reduce solar heat gain. Laminated glass is the upgrade for impact resistance and sound control, and it can be combined with tint or Low-E coatings.
Installation by Westlight Windows & Doors in Los Angeles
We are not a general contractor who occasionally hangs a door. Westlight Windows & Doors installs these systems daily across Los Angeles, and we follow the manufacturer’s installation requirements to the letter. That matters because a pivot door with a 120-inch glass panel will not tolerate a frame that is out of plumb by even a fraction of an inch. When the opening is not perfectly level and square, the door binds, the glass stresses, and the warranty disappears.
Our process starts with a pre-install inspection of the rough opening. We check the substrate, confirm the opening dimensions against the door order, and verify that the header can carry the load. Then we set the frame level, plumb, and square, shimming where needed and anchoring per code. Every perimeter joint is sealed with AAMA 812 low-expansion foam, which keeps air and water out without distorting the frame as it cures. We install to AAMA 2400/2410 standards, then run a water test on the sill and lower corners. Cleanup happens before we leave, and we walk you through the door’s operation and hardware adjustments.
Los Angeles brings specific considerations. Coastal properties deal with salt air, so we pay extra attention to hardware protection and finish care. Hillside homes can shift slightly over time, so we leave the frame with proper clearance and document the installation for future reference. And because ViewLux warranties are tied to proper installation, every job is documented: measurements, photos, sealant used, and final condition.
Frequently Asked Questions - VLX 100 Pivot Door
Lead time for the VLX 100 typically runs six to ten weeks from order confirmation, depending on the glass package and finish you select. Custom sizes and specialty glass like laminated Low-E can add time. We quote a specific delivery window when you order. Call (903) 354-7134 to discuss your timeline before you place the order.
The VLX 100 may qualify for energy tax credits when ordered with Low-E or thermally efficient glass packages that meet current federal efficiency standards. The door’s NFRC-rated thermal break frame contributes to the overall rating. We can provide the performance documentation you need for your accountant. Call (903) 354-7134 and we will confirm what your configuration qualifies for.
ViewLux provides a manufacturer warranty on the VLX 100 frame and hardware, and the warranty remains valid only when the door is installed by an authorized partner following their installation standards. Westlight Windows & Doors is an authorized ViewLux installation partner, so your warranty stays intact from day one. We also stand behind our workmanship with our own installation warranty. Call (903) 354-7134 for specific warranty terms on your configuration.
Yes, within the maximum span of 60 inches wide by 120 inches tall per panel. Most Los Angeles projects involve custom sizing, since rough openings in older homes rarely match a stock dimension. We measure on-site, confirm the exact panel size with you, and order the door to fit. Call (903) 354-7134 to schedule a free measurement.
Aluminum frames need little maintenance: an annual cleaning with mild soap and water, inspection of the perimeter seal, and occasional lubrication of the pivot hardware. In coastal Los Angeles neighborhoods, rinsing salt film off the frame every few months prevents pitting. We include care instructions with every installation. If you ever have a hardware question, call (903) 354-7134.
Get a Quote - VLX 100 Pivot Door in Los Angeles
The VLX 100 is a custom, project-specific product. If you’re building or remodeling in Los Angeles, start with a conversation. We’ll discuss your opening size, glass preferences, finish, and timeline, then deliver a written line-item quote you can plan around. Estimates are free, and so is the on-site measurement.
Call Westlight Windows & Doors at (903) 354-7134 to schedule your free measurement and quote for the VLX 100 pivot door in Los Angeles, CA.
Written by the team at Westlight Windows & Doors, authorized ViewLux installation partner serving Los Angeles, CA.
